|Product Description||QSFP-DD FR4|
|Connector||Duplex LC SM|

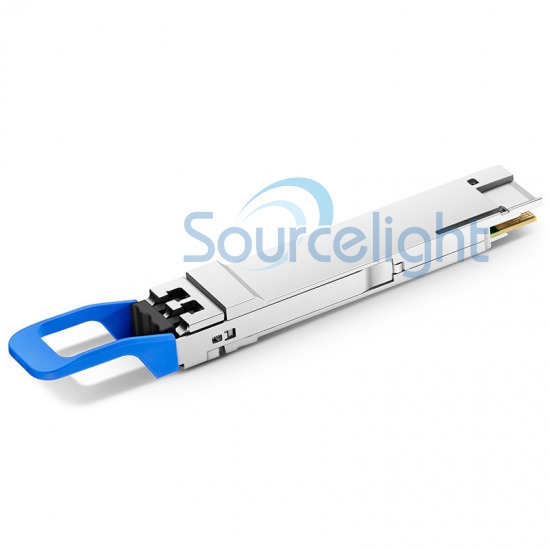

SLQS-DD-400G-FR4 is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 2km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 2km fiber transmission.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
|Package (Form Factor)||QSFP-DD|
|Data Rate (typical)||106.25/CH|
|Centre Wavelength||1271nm, 1291nm, 1311nm, 1331nm|
|Distance||2km on SMF with FEC|
|TX Output Power (dBm)||-3.3~+3.5dBm|
|RX Sensitivity (dBm)||<-7.3dBm|
|Low/High Case Temperature||0°C~70°C|
|Voltage Supply (typical)||3.3v|
