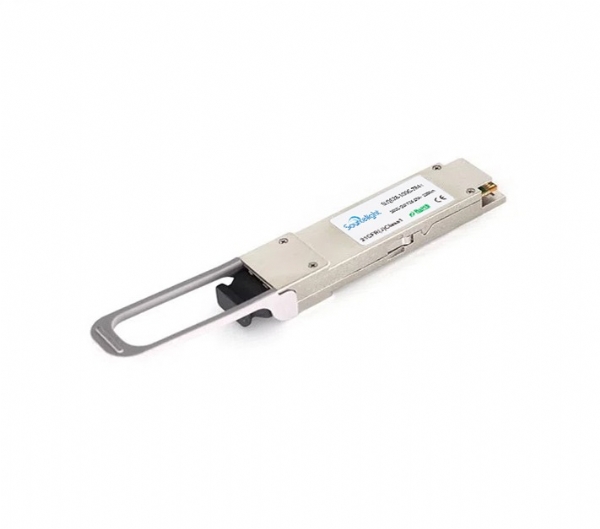

100G QSFP28 ZR4+ 100KM
100G QSFP28 ZR4+ 100KM
  • 100G QSFP28 ZR4+ 100KM
  • Item : SLQS28-100G-ZR4+
  • NameValue
    Product DescriptionQSFP28 ZR4+
    Data Rate100Gbit/s
    Reach100km
    Tx4 LAN-WDM EML
    RxPIN w/ SOA
    ConnectorDuplex LC SM
  • SLQS28-100G-ZR4+ is designed for 100km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter- face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Features
Parameter
Application
  • QSFP28 MSA compliant
  • Supports 100GBASE 100GE
  • Lane bit rate 25.78 Gb/s 100GE
  • LAN WDM EML laser and PIN receiver with SOA
  • LC duplex connector
  • Up to 100km transmission on SMF
  • Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS
  • High speed I/O electrical interface (CAUI-4)
  • I2C interface with integrated Digital Diagnostic monitoring
  • Maximum power consumption 6W
  • Operating case temperature: 0 ºC to 70 ºC
  • Single 3.3V power supply
  • Compliant to IEEE 802.3bm and ITU-T G.959
  • Compliant to SFF-8665 and SFF-8679
  • Complies with EU Directive 2015/863/EU
  • RoHS-6 compliant
Package (Form Factor) QSFP28 ZR4+
Data Rate (typical) 25.78 Gbps/CH
Centre Wavelength 1310nm
Distance 100km on SMF
Diagnostics Digital Monitor
Transmitter LAN WDM EML
Receiver PIN with SOA
TX Output Power (dBm) +3.5~+8dBm
RX Sensitivity (dBm) -28dBm
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC
  • 100GBASE-ZR4+
