| Name | Value |
| Package | OSFP224 2xFR4 |
| Data Rate | 1.6Tbit/s |
| Reach | 2km |
| Tx | EML |
| Rx | PIN |
| Connector | Dual Duplex LC UPC |
| Fiber Type | SMF |

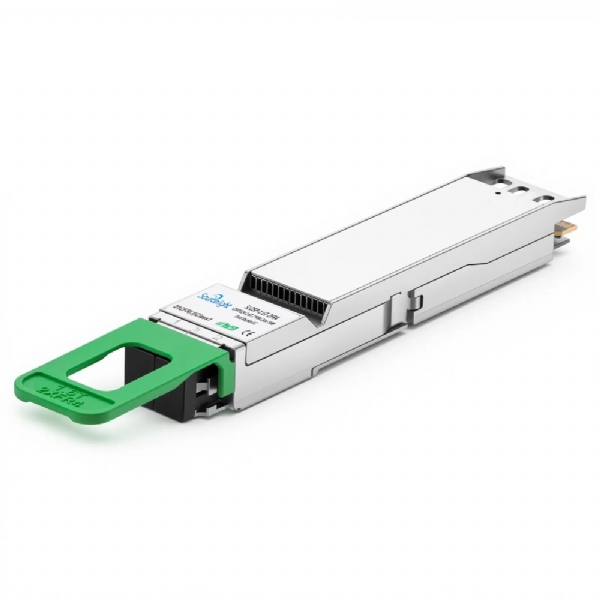

Sourcelight 1600GBASE OSFP224 2*FR4 transceiver is an 1.6T 2x 800Gb/s Twin-port OSFP, 2x FR4 single mode. It is 8-channel transceiver using two, 2-fiber, LC Duplex optical connectors each carrying 4-channels of 200G-PAM4.
The dual far reach 8-channel (2x FR4) design uses 200G-PAM4 electrical and optical modulation based on the CWDM4 serial, multiplexed 1310nm wavelength grid. It is qualified for use in InfiniBand XDR end-to-end systems.
| Package (Form Factor) | OSFP224 |
| Data Rate (typical) | 1600Gbps |
| Centre Wavelength | 1271nm, 1291nm, 1311nm and 1331nm |
| Distance | 2km on SMF |
| Diagnostics | Digital Monitor |
| Transmitter | EML |
| Receiver | PIN |
| TX Output Power (dBm) | -2.2~+4.9dBm |
| Minimum Receiver Power (dBm) | <-6.2dBm |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Dual Duplex LC UPC |
