| Name | Value |

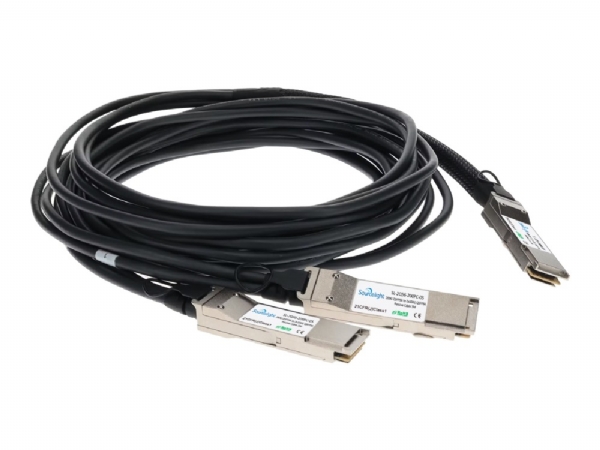

| Product Description | QSFP56 to 2xQSFP56 DAC Passive |
| Data Rate | 200Gbit/s |
| Cable Length | 1~5m |
| Fiber Cable | Copper Cable |
Sourcelight 200G QSFP56 passive cable assembly products, based on 4x25G/4x28G or 4*50G/4*56G (PAM-4) structure. This product can well meet the next generation of 200G switches, servers, routers and other products application needs.
The cable connects the data signals from each of the 2 dual copper pairs on the single QSFP56 (pair 1&2, 3&4) end to the dual copper pair of each of the QSFP56 (pair 1&2) ends on the multi-port side.
| Package (Form Factor) | 200G QSFP56 DAC Passive Copper Cable |
| Data Rate (typical) | 200Gbps (50Gbps/CH) |
| Distance | Up to 5m |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | QSFP56 to 2xQSFP56 |
