| Name | Value |
| Product Description | QSFP-DD to QSFP-DD AOC |
| Data Rate | 400Gbit/s |
| Cable Length | 1~100m |
| Tx | VCSEL |
| Rx | PIN |
| Cable Type | Optical Cable |

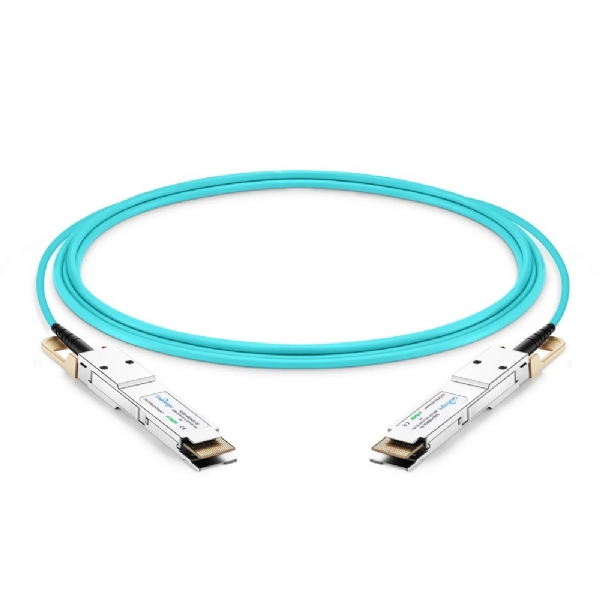

Sourcelight 400G QSFP-DD AOC is designed to transmit and receive serial optical data links up to 53. 125 Gb/s data rate (per channel) by PAM4 modulation format over multi-mode fiber.
It is a small-form-factor hot pluggable transceiver module integrated with the high performance VCSEL laser and high sensitivity PIN receiver. It is compliant with 400G Ethernet specs; QSFP-DD MSA.
| Package (Form Factor) | 400G QSFP-DD AOC |
| Data Rate (typical) | 400Gbps (53. 125Gbps/CH) |
| Cable Length | Up to 100m on MMF OM4 |
| Transmitter | VCSEL |
| Receiver | PIN |
| Power Consumption | < 9.5W |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | QSFP-DD |
