| Name | Value |
| Package | QSFP-DD DR8+ |
| Data Rate | 800Gbit/s |
| Reach | 2km |
| Tx | EML |
| Rx | PIN |
| Connector | MTP/MPO-16 APC |
| Cable Type | SMF |

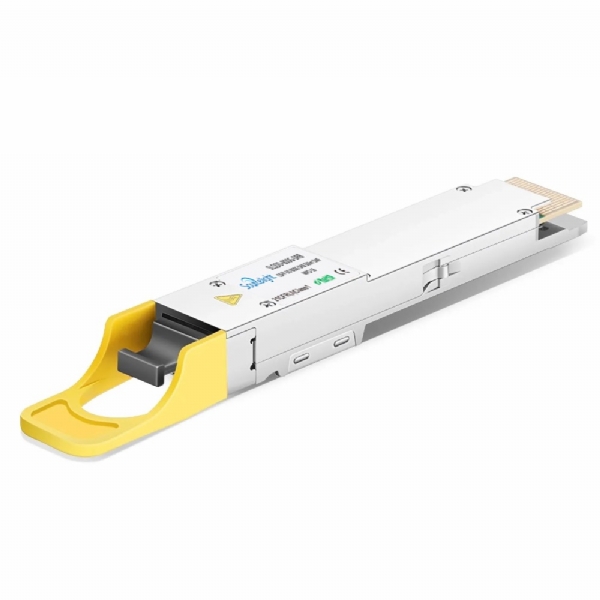

Sourcelight 800GBASE QSFP-DD DR8+ is designed for 800GBASE Ethernet throughput up to 2km link lengths over OS2 single-mode fiber (SMF) using a wavelength of 1310nm via MTP/MPO-16 APC connectors.
The module supports 2x 400G DR4 and 8x 100G DR breakout applications. It can also be configured for 400G operation. This module is suitable for 800G Ethernet, Data Center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
| Package (Form Factor) | QSFP-DD |
| Data Rate (typical) | 800Gbps (8x106.25Gbps) |
| Centre Wavelength | 1310nm |
| Distance | 2km on SMF |
| Diagnostics | Digital Monitor |
| Transmitter | EML |
| Receiver | PIN |
| TX Output Power (dBm) | -2.9~+4dBm |
| Minimum Receiver Power (dBm) | -5.9dBm |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | MTP/MPO-16 APC |
