| Name | Value |
| Product Description | CFP ER4 |
| Data Rate | 100Gbit/s |
| Reach | 40km |
| Tx | LAN WDM EML |
| Rx | PIN |
| Connector | Duplex LC SM |

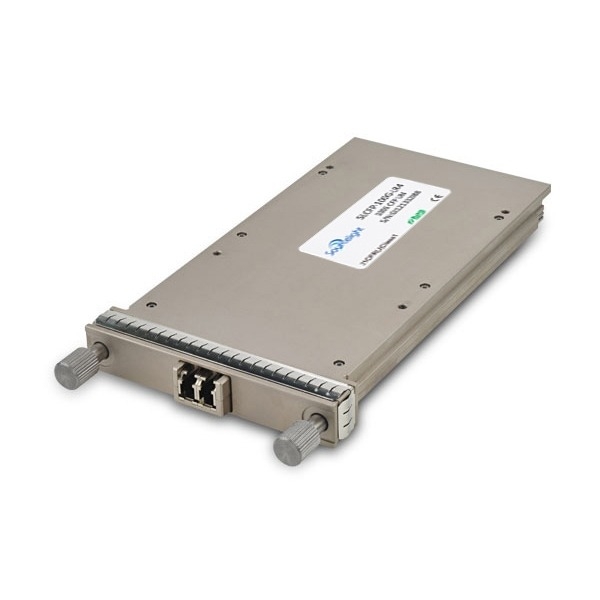

SLCF-100G-ER4 operates at 1310nm wavelength. The module supports link lengths of up to 40km over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4.
| Package (Form Factor) | CFP ER4 |
| Data Rate (typical) | 25.78~27.95Gbps/CH |
| Centre Wavelength | 1310nm(Center) |
| Distance | 40KM SMF |
| Diagnostics | Digital Monitor |
| Transmitter | LAN-WDM EML |
| Receiver | PIN |
| TX Output Power (dBm) | -2.9~+2.9 |
| RX Sensitivity (dBm) | -20.9(100GE)/-20.7(OTU4) |
| Low/High Case Temperature | -5°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex LC/UPC |
