| Name | Value |
| Product Description | CFP2 LR4 |
| Data Rate | 100Gbit/s |
| Reach | 10km |
| Tx | LWDM DFB |
| Rx | PIN |
| Connector | Duplex LC SM |

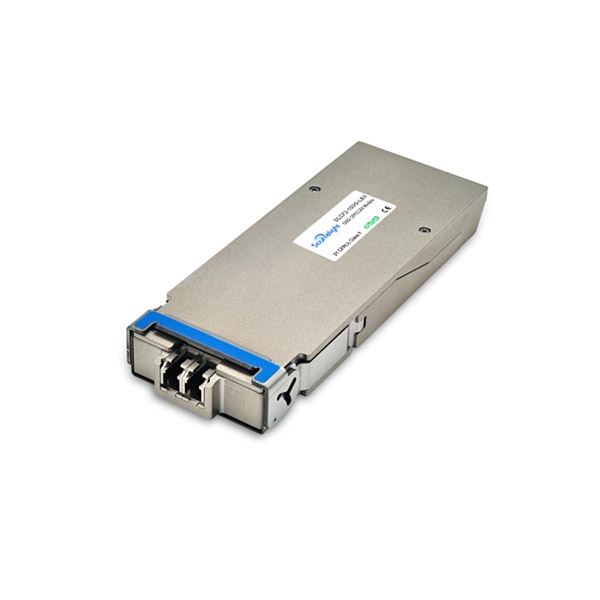

Sourcelight CFP2 100G LR4 are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber.
They are compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3.
| Package (Form Factor) | CFP2 LR4 |
| Data Rate (typical) | 25.78~27.95Gbps/CH |
| Centre Wavelength | 1310nm(Center) |
| Distance | 10KM SMF |
| Diagnostics | Digital Monitor |
| Transmitter | 4x28Gb/s DFB |
| Receiver | PIN photo detector |
| TX Output Power (dBm) | -2.9~+4.5 |
| RX Sensitivity (dBm) | -9.2 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex LC/UPC |
