| Name | Value |
| Product Description | CFP2 SR10 |
| Data Rate | 100Gbit/s |
| Reach | 300m/400m |
| Tx | 850nm VCSEL Array |
| Rx | PIN |
| Connector | MPO MM |

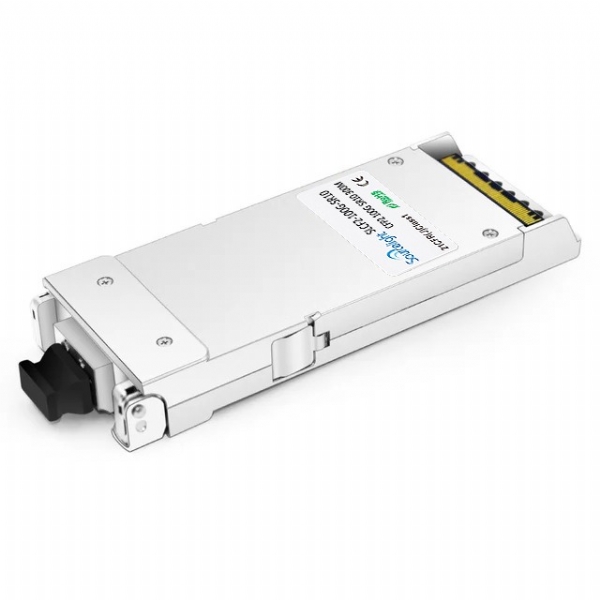

Sourcelight’s CFP2 optical transceiver module are a high performance, low power consumption, short reach interconnect solution supporting 100G Ethernet and Telecom. It is compliant with the CFP2 MSA and IEEE P802.3ba 100GBASE-SR10. Sourcelight CFP2 SR10 modules offer 10 transmit and 10 receive asynchronous channels operating at up to 11.18Gbps per channel.
| Package (Form Factor) | CFP2 SR10 |
| Data Rate (typical) | 11.18Gbps/CH |
| Centre Wavelength | 850nm |
| Distance | 300M (OM3) / 400M (OM4) MMF |
| Diagnostics | Digital Monitor |
| Transmitter | 10CH 850nm VCSEL array |
| Receiver | 10CH PIN photo detector |
| TX Output Power (dBm) | -7.6~+2.4 |
| RX Sensitivity (dBm) | -9.9/CH |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | MPO |
