100G CFP TO QSFP28 CONVERTER
100G CFP TO QSFP28 CONVERTER
  • 100G CFP TO QSFP28 CONVERTER
  • Item : SL-CFP-QSFP28
  • NameValue
    Product DescriptionCFP To QSFP28 Converter
    Data Rate100Gbit/s
    Reach--
    Tx--
    Rx--
    Connector100G QSFP28

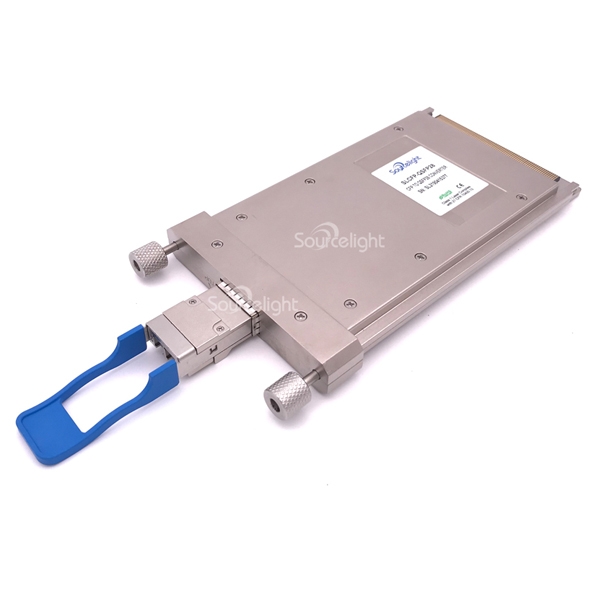

  • The 100G CFP to QSFP28 Adapter module is a high performance, hot pluggable, and interconnect solution supporting 100G Ethernet and Telecom. The Adapter converts a CFP MSA interface to 1-port of 100GE QSFP28. It is compliant with the CFP MSA. Sourcelight 100G CFP to QSFP28 Adapter module converts 10 bidirectional 10G channels to 4 bidirectional 25G channels operating at up to 28Gbps per channel. The Adapter supports FEC (Forward Error Correction) function; the user can enable the FEC function through the register configuration.

Features
Parameter
Application
  • Compliant to CFP Hardware Specification Version 1.4
  • Compliant to CFP MSA Management Interface Specification Version 2.2
  • Converts 10 bidirectional 10G lanes to4 bidirectional 25G lanes
  • 1 port QSFP28 TX&RX
  • Support 100G IEEE 802.3bj NRZ FEC
  • Transmission data rate up to 28Gbps per channel
  • OTU4 compatible(FEC is invalid when OTU4 data rate mode is on)
  • FEC is configurable
  • MDIO digital diagnostic interface and control capabilities
  • Power class 2 (Adapter<5W max)
  • Hot pluggable electrical interface
  • Operating case temperature: 0°C~ +70°C
  • Single 3.3V power supply
  • RoHS 6 compliant (lead free)
Package (Form Factor) CFP TO QSFP28
Data Rate (typical) 100Gb/s
Diagnostics Digital Monitor
Low/High Case Temperature  0°C~70°C
Voltage Supply (typical) 3.3v
Connector QSFP28
  • 100GBE interconnects, IEEE 802.3ba 100GBASE-LR4(Adapter+QSFP28_LR4), IEEE 802.3bm 100GBASE-SR4(Adapter+QSFP28_SR4)
  • High-speed core router connections & Datacom/Telecom switch
  • Data aggregation and backplane applications
  • Proprietary protocol and density application
