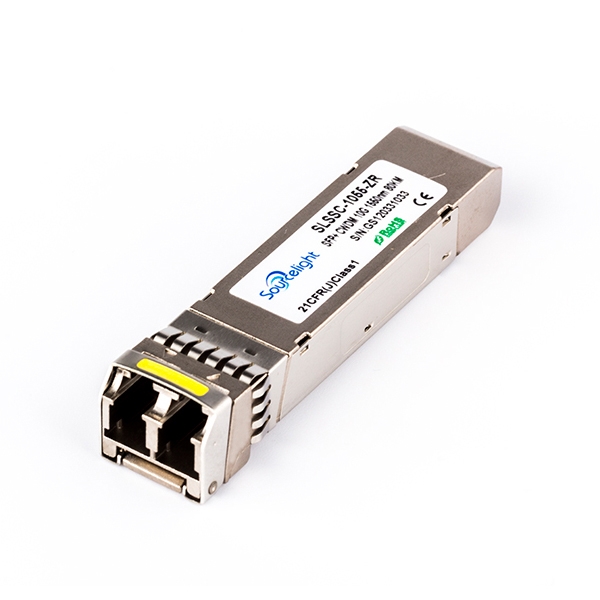

Sourcelight SFP+ER CWDM Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/ 8G/10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
|Package (Form Factor)||CWDM SFP+|
|Data Rate (typical)||10.3 Gb/s|
|Transmitter||Cooled EML Laser|
|Receiver||PIN photo detector|
|TX Output Power (dBm)||-1~+2|
|RX Sensitivity (dBm)||-14|
|Low/High Case Temperature||0°C~70°C|
|Voltage Supply (typical)||3.3v|
