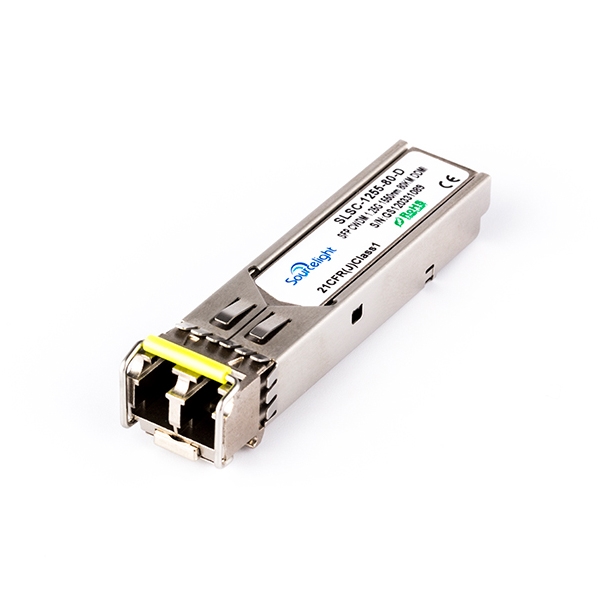

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 40km transmission distance with SMF.
The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
|Package (Form Factor)||CWDM SFP|
|Data Rate (typical)||1.25 Gb/s|
|Transmitter||CWDM DFB Laser|
|Receiver||PIN photo detector|
|TX Output Power (dBm)||-5~0|
|RX Sensitivity (dBm)||-23|
|Low/High Case Temperature||0°C~70°C|
|Voltage Supply (typical)||3.3v|
