10G XFP CWDM 1470~1610NM 80KM

10G XFP CWDM 1470~1610NM 80KM

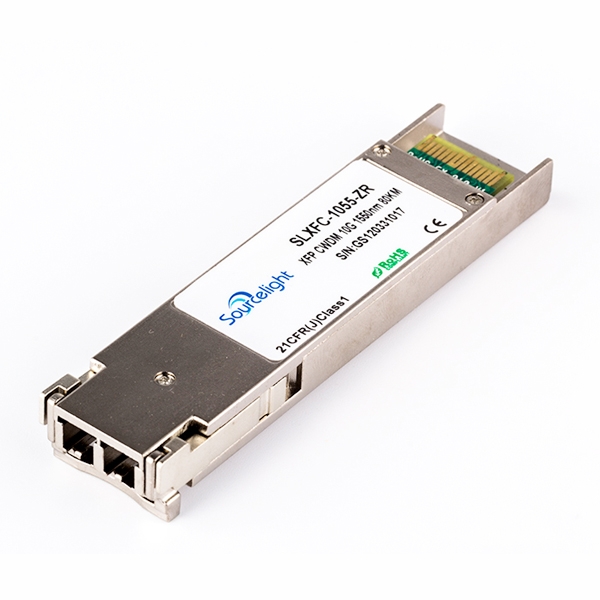

Item : SLXFC-10XX-ZR
Name Value

Package CWDM XFP
Data Rate 10Gbit/s
Wavelength 1470-1610nm
Connector Duplex LC
Reach 80km
Temp 0-70
DDM YES
Fiber Type SMF
Sourcelight CWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G CWDM SDH, 10GBASE-ZR and 10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Gigalight CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
XFP MSA Rev 4.5 Compliant
Data rate from 9.95Gbps to 11.3Gbps
No Reference Clock required
Cooled EML and APD receiver
link length up to 80km
Low Power Dissipation 3.5W Maximum
XFI and lineside loopback Mode Supported
-5ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power
RoHS6 compliant (lead free)
