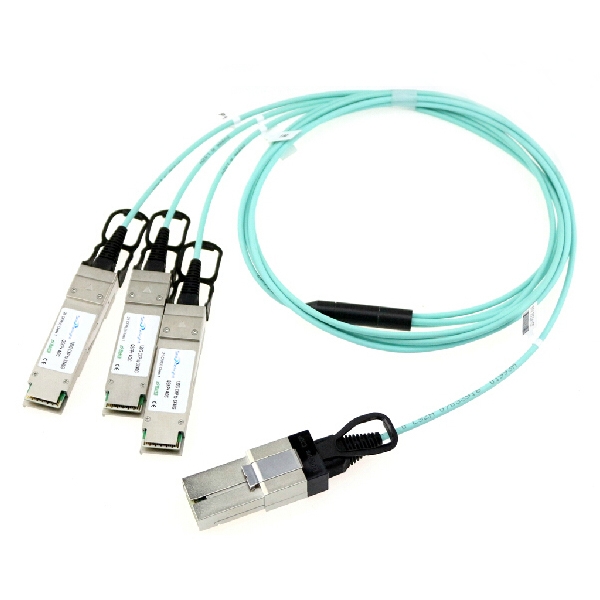

120G CXP-3QSFP+ Active Optical Cable
120G CXP-3QSFP+ Active Optical Cable
  • 120G CXP-3QSFP+ Active Optical Cable
  • Item : SLCX-3Q-120AOC-XX
  • NameValue
    Product DescriptionCXP To 3*QSFP+ AOC
    Data Rate120Gbit/s
    Reach1~100m
    Tx850nm VCSEL
    RxPIN
    Fiber CableOM3/OM4 MM
  • CXP to 3xQSFP active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 120G Ethernet, fiber channel and PCIe.

    It is compliant with the 120Gbits Small Form factor Hot-Pluggable CXP-interface and QSFP-interface. Sourcelight CXP to 3xQSFP is an assembly of 12 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 120Gb/s.

Features
Parameter
Application
  • QSFP+ End compliant to SFF-8436
  • CXP End compliant to SFF-8642 and IBTA V2 Revision 1.2.1 Annex A6
  • Full duplex 12CH 850nm parallel active optical cable
  • Transmission data rate up to 10.3Gbit/s per channel
  • Hot pluggable electrical interface
  • Differential AC-coupled high speed data interface
  • 12 channels 850nm VCSEL array
  • 12 channels PIN photo detector array
  • Up to 100m on OM3 MMF
  • 3.3V power supply voltage
  • Low power consumption: CXP End< 2W,QSFP End<1W
  • Operating case temperature 0°C to +70°C
  • RoHS 6 compliant
Package (Form Factor) CXP-3QSFP+ AOC
Data Rate (typical) 10.3 Gbps/CH
Distance 100m on OM3 MMF
Transmitter 12CH VCSEL Array Laser
Receiver 12CH PIN photo detector Array
Low/High Case Temperature  0°C~70°C
Voltage Supply (typical) 3.3v
Connector CXP QSFP+
  • InfiniBand 12xSDR,12xDDR,12xQDR
  • Ethernet 10G,40G,100G
  • Rack-to-Rack, Shelf-to-Shelf Interconnect
  • Networking, NIC
  • Storage: DAS, SAN, NAS
  • Hubs, Switches, Routers, Servers
