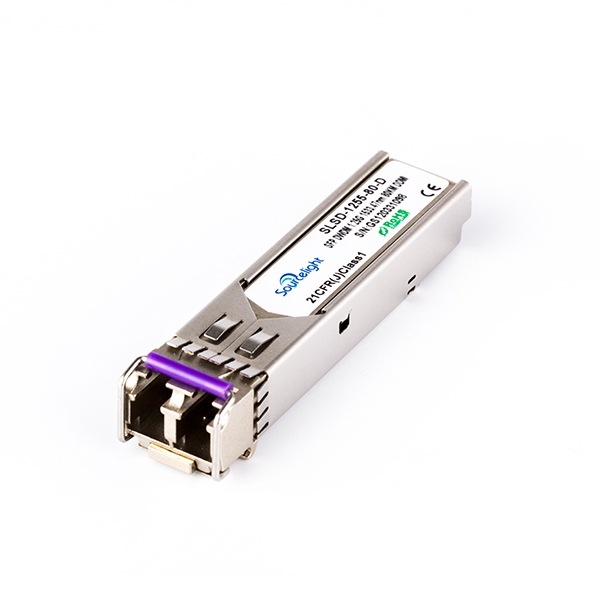

Sourcelight DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Gigalight DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.
|Package (Form Factor)||DWDM SFP|
|Data Rate (typical)||1.25 Gb/s|
|Centre Wavelength||C-band CH17~CH61|
|Transmitter||DWDM DFB Laser|
|Receiver||APD photo detector|
|TX Output Power (dBm)||0~+4|
|RX Sensitivity (dBm)||-32|
|Low/High Case Temperature||0°C~70°C|
|Voltage Supply (typical)||3.3v|
