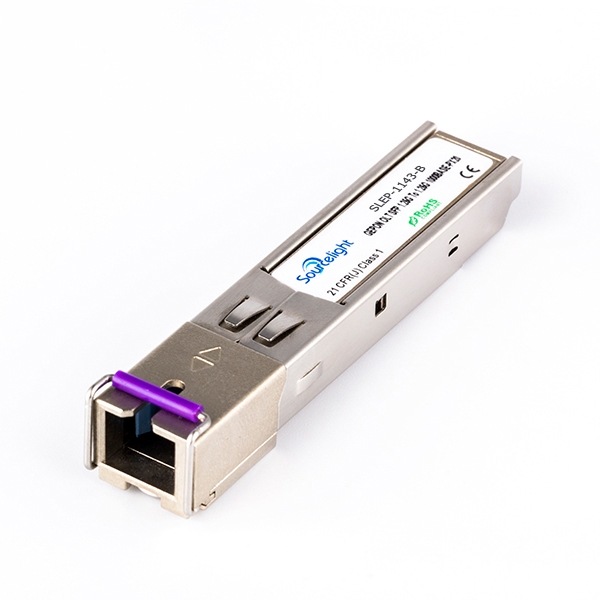

The SLEP-1143-P transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver. It is optical line terminal (OLT) for IEEE Std 802.3ah™ -2004 1000BASE-PX20. The optical transceiver is compliant with the Small Form- Factor Pluggable (SFP) Multi-Source Agreement (MSA).
The transmitter section uses a 1490nm DFB LD with automatic power control (APC) function and temperature compensation circuitry to ensure stable extinction ratio over all operating temperature range. and is Class 1 laser compliant IEC825 and CDRH standards The receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with LVPECL compatible differential outputs.
|Package (Form Factor)||EPON SFP|
|Data Rate (typical)||1.25Gbps/1.25Gbps|
|Receiver||APD photo detector|
|TX Output Power (dBm)||+3~+7|
|RX Sensitivity (dBm)||-28|
|Low/High Case Temperature||0°C~70°C|
|Voltage Supply (typical)||3.3v|
