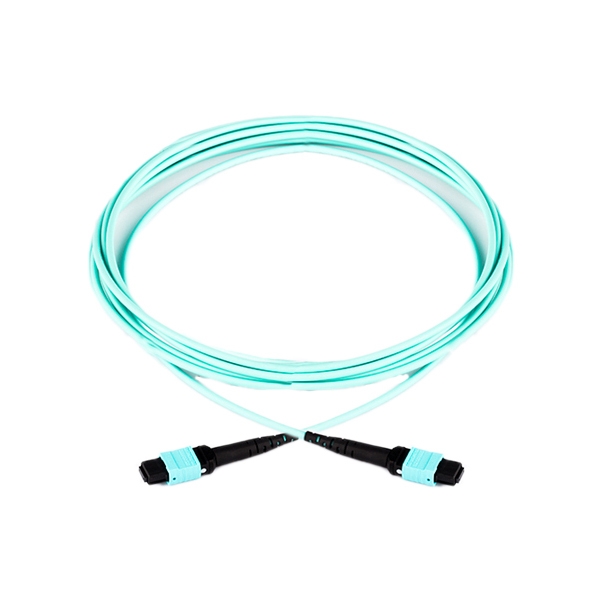

The MPO / MTP patchcords are simplex multi-fiber Cable using the MPO / MTP connector in fiber counts of 4, 8, 12, 24 or 48. They offer Male and Female MPO / MTP connectors on each end. Available in 4~48 fibers versions as well as multi-mode (62.5/125, 10G OM2 / OM3 / OM4, Bend-insensitive fiber, etc.) and single-mode (G652D, G657A1 etc.) fiber types.
With our highly integrated design and manufacturing capability, Sourcelight can also provide customized products and solution to help customer for better opportunities. Our products are 100% tested at our factory to deliver optimal performance and reliability.
| Type | Single mode / Multi mode |
| Polishing Type | PC / UPC |
| Cable diameter | Ribbon Fanout |
| Insertion loss (IL) [dB] | < 0.3 For SMF / < 0.5 For MMF |
| Return loss (RL) [dB] | > 45 PC / > 50 UPC |
| Ferrule ID(mm) | 0.125 For SMF / 0.127 For MMF |
| Exchangeability | ≤ 0.2 dB ( Connect Randomly ) |
| Vibration | ≤ 0.2 dB ( 5～50 Hz, 1.5mm Amplitude ) |
| Temp. Range | ≤ 0.2 dB ( - 40ºC ～ 80ºC, 21 Cycles ) |
| Body Color | Gray for PC |
| Boot Color | black / blue or customized available |
