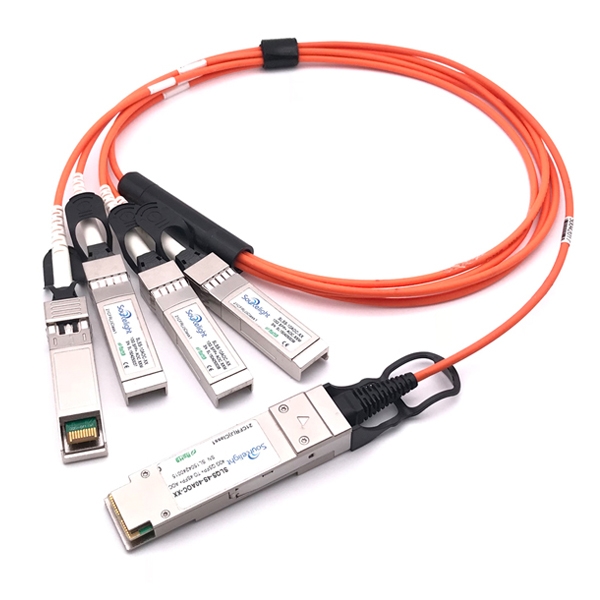

40G QSFP-4SFP+ Active Optical Cable
40G QSFP-4SFP+ Active Optical Cable
  • 40G QSFP-4SFP+ Active Optical Cable
  • Item : SLQS-4S-40AOC-XX
  • NameValue
    Product DescriptionQSFP+ To 4*SFP+ AOC
    Data Rate40Gbit/s
    Reach1~100m
    Tx850nm VCSEL
    RxPIN
    Fiber CableOM3/OM4 MM
  • Sourcelight QSFP to 4x SFP+ breakout Active Optical Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.

    For typical applications, users can install this splitter Active Optical cable between an available QSFP port on their 40Gbps rated switch and feed up to four upstream 10GbE-SFP+ enabled switches. Each QSFP-SFP+ splitter Active Optical cable features a single QSFP connector (SFF-8436) rated for 40Gbps on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.

Features
Parameter
Application
  • Electrical interface compliant to QSFP+ (SFF-8436)
  • SFP+ connectors (SFF-8431)
  • Hot Pluggable
  • 850nm VCSEL transmitter PIN photo detector receiver
  • Up to 100m on OM3 MMF
  • Operating case temperature: 0 to 70℃
  • All-metal housing for superior EMI performance
  • RoHS compliant
Package (Form Factor) QSFP-4SFP+ AOC
Data Rate (typical) 10.3 Gbps/CH
Distance 100m on OM3 MMF
Transmitter 4CH VCSEL Array Laser
Receiver 4CH PIN photo detector Array
TX Output Power (dBm) -7.5~+2.5
RX Sensitivity (dBm) -5.4
Low/High Case Temperature  0°C~70°C
Voltage Supply (typical) 3.3v
Connector QSFP+ SFP+
  • 40 Gigabit Ethernet
  • Fibre Channel Applications
  • InfiniBand QDR, SDR, DDR
  • High-performance computing clusters
  • Servers, switches, storage and host card adapters
