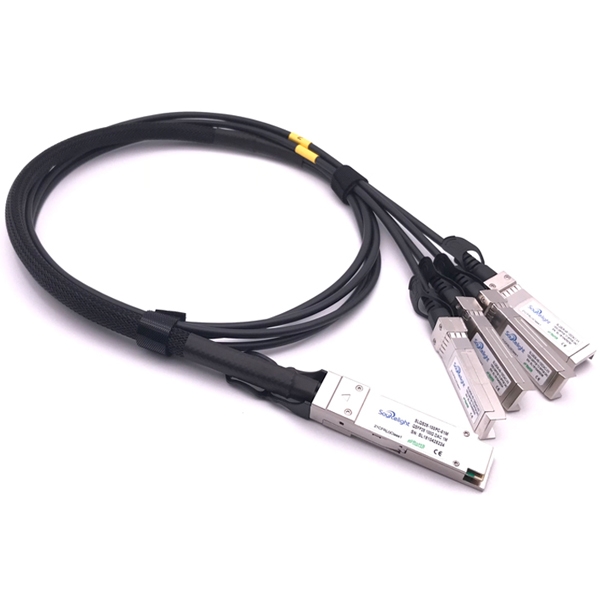

40G QSFP-4SFP+ PASSIVE CABLE
40G QSFP-4SFP+ PASSIVE CABLE
  • 40G QSFP-4SFP+ PASSIVE CABLE
  • Item : SLQS-4S-40PC-XX
  • NameValue
    Product DescriptionQSFP+ To 4*SFP+ DAC Passive
    Data Rate40Gbit/s
    Reach1~5m
    Tx--
    Rx--
    Fiber CableCopper Cable
  • The QSFP+ to 4x SFP+ Passive cable assemblies are high performance,cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications.

    It is offer a low power consumption,short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features
Parameter
Application
  • Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
  • Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
  • Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
  • Hybrid cable link length up to 5m (passive limiting)
  • High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
  • Power Supply :+3.3V
  • Low power consumption: 0.02 W (typ.)
  • Temperature Range: 0~ 70 °C
Package (Form Factor) QSFP-4SFP+ Copper Cable
Data Rate (typical) 10.3 Gbps/CH
Distance Up to 5m
Low/High Case Temperature  0°C~70°C
Voltage Supply (typical) 3.3v
Connector QSFP SFP+
  • 40G QSFP+ to 4×10SFP+
  • 10G/40Gigabit Ethernet
  • InfiniBand4x SDR, DDR, QDR
  • Switches, Routers, and HBAs
  • Data Centers
  • Fiber Channel
