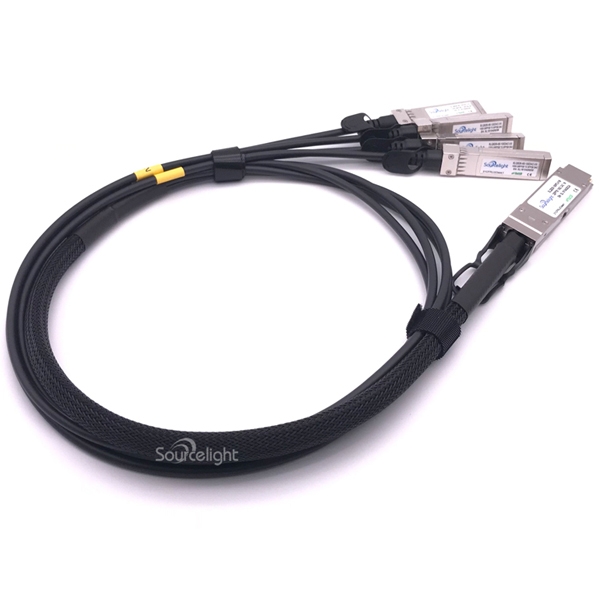

100G QSFP28 TO 4SFP28 DAC Cable

100G QSFP28 TO 4SFP28 DAC Cable
Item : SLQS28-4S-100PC-XX
Name Value

Product Description QSFP28 To 4*SFP28 DAC Passive
Data Rate 100Gbit/s
Reach 1~5m
Tx --
Rx --
Fiber Cable Copper Cable
The 100G QSFP28 to 4x 25G SFP28 Passive cable assemblies are high performance, cost effective for SFP28 and QSFP28 equipment interconnects. The Hybrid cables are compliant with SFF-8402 and SFF-8665 specifications. It is offer a low power consumption, short reach interconnect applications.

The cable each lane is capable of transmitting data at rates up to 25Gb/s, providing an aggregated rate of 100Gb/s.

Supporting 100 Gbps to 4 x 25 Gbps
Support data rates : 25.78Gb/s (per channel)
IEEE 802.3bj 100GEBASE-CR4 and P802.3by compliant
Compatible to SFP28 MSA and QSFP28 MSA
Compatible to SFF-8402, SFF-8432 and SFF8665
Maximum aggregate data rate: 100 Gb/s (4 x 25Gb/s)
High-Density QSFP28 38-PIN and 4 x SFP28 20-PIN Connector
Temperature Range: 0~ 70 °C
Copper link length up to 5m
Power Supply :+3.3V
Low crosstalk
I2C based two-wire serial interface for EEPROM signature which can be customized
Operating Temperature: 0~ 70 °C
RoHS Compliant
