| Name | Value |
| Product Description | QSFP28 SWDM4 |
| Data Rate | 100Gbit/s |
| Reach | 75m/100m/150m |
| Tx | 850nm VCSEL |
| Rx | PIN |
| Connector | Duplex LC MM |

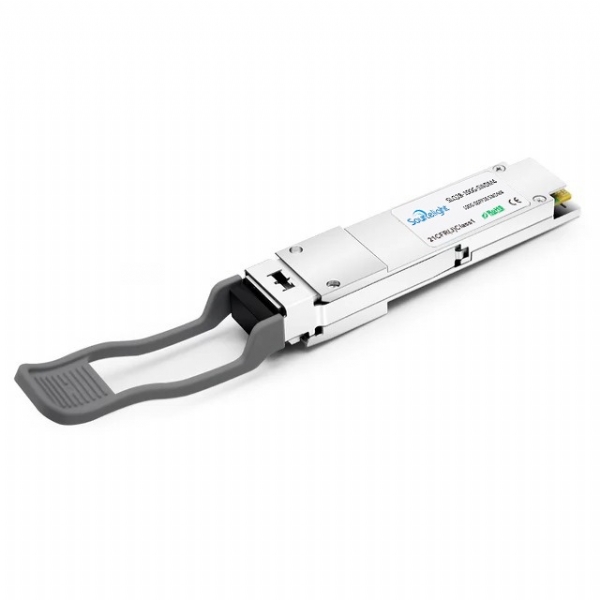

SLQ28-100G-SWDM4 is 100G QSFP28 SWDM4 transceiver modules, designed for use in 100G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region at 25.78Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.
The module provides 100GBase-SWDM4 throughput up to 75m over OM3, 100m over OM4 or 150m over OM5 multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector.
| Package (Form Factor) | QSFP28 SWDM4 |
| Data Rate (typical) | 25.78 Gbps/CH |
| Centre Wavelength | 850nm |
| Distance | 75m (OM3) / 100m (OM4) / 150m (OM5) |
| Diagnostics | Digital Monitor |
| Transmitter | 850nm VCSEL |
| Receiver | PIN |
| TX Output Power (dBm) | -5.5~+3 |
| RX Sensitivity (dBm) | -12 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex LC |
