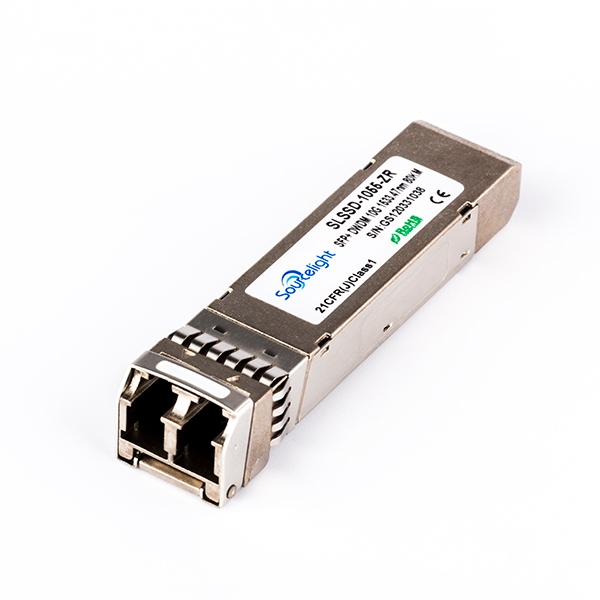

50GHz Full C-band Tunable SFP+ transceivers are designed for use in 10Gb/s to 11.1Gb/s 50GHz DWDM links up to 80km of G.652 fiber.
The Tunable SFP+ module supports 10GBASE-ZR and –ZW applications along with SONET OC-192 LR-2 and SDH STM-64 ITU-T G.959.1 P1L1-2D2 applications for Ethernet Switches, IP Routers or SONET/SDH optical interfaces. Digital Optical Monitoring interfaces are provided via the SFP+ standards compliant I2C interface.
|Package (Form Factor)||Tunable SFP+ DWDM|
|Data Rate (typical)||10.3 Gb/s|
|Centre Wavelength||C-band 80 ITU-based channel|
|Receiver||APD photo detector|
|TX Output Power (dBm)||-1~+3|
|RX Sensitivity (dBm)||-24|
|Low/High Case Temperature||0°C~70°C|
|Voltage Supply (typical)||3.3v|
