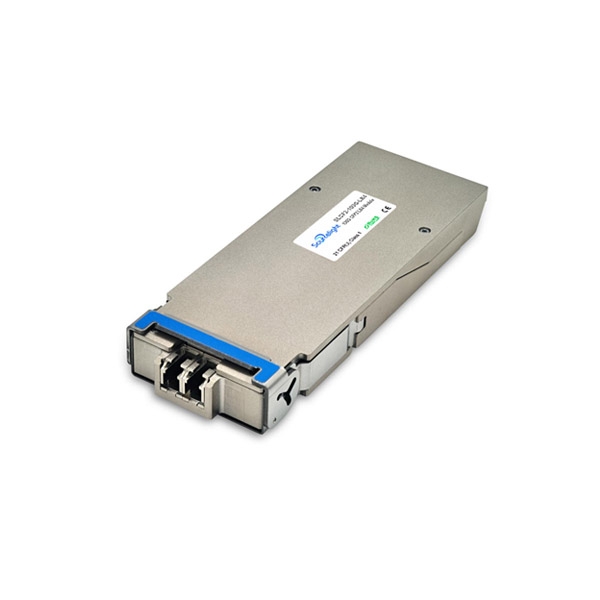

100G CFP2 ER4 LC 40KM SMF
100G CFP2 ER4 LC 40KM SMF
  • 100G CFP2 ER4 LC 40KM SMF
  • Item : SLCF2-100G-ER4
  • NameValue
    Product DescriptionCFP2 ER4
    Data Rate100Gbit/s
    Reach40km
    Tx1296~1309nm LWDM EML
    RxPIN
    ConnectorDuplex LC SM
  • CFP2 100G ER4 are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber. They are compliant with the CFP MSA1, IEEE 802.3ba and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3.

Features
Parameter
Application
  • Direct LC receptacle optical interface
  • Single +3.3V power supply
  • Hot-pluggable
  • Operating optical data rate up to 112Gbps
  • Transmission distance up to 40km
  • AC coupling of CML signals
  • 1310 nm window cooled EA-DFB LD
  • Integrated SOA, PIN ROSA and TOSA
  • Low power dissipation(Max:9W)
  • Built in digital diagnostic function
  • Operating case temperature range: 0℃ to 70℃
  • Compliant with RoHs
  • MDIO Communication Interface
Package (Form Factor) CFP2 ER4
Data Rate (typical) 25.78~27.95Gbps/CH
Centre Wavelength 1310nm(Center)
Distance 40KM SMF
Diagnostics Digital Monitor
Transmitter 4x28Gb/s DFB
Receiver PIN photo detector
TX Output Power (dBm) -2.5~+2.9
RX Sensitivity (dBm) -20.9(100GE)/-23.2(OTU4)
Low/High Case Temperature  0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC
  • Local and wide area network (LAN and WAN)
  • Ethernet switches and router applications
  • ITU-T OTU4 OTL4.4 applications
