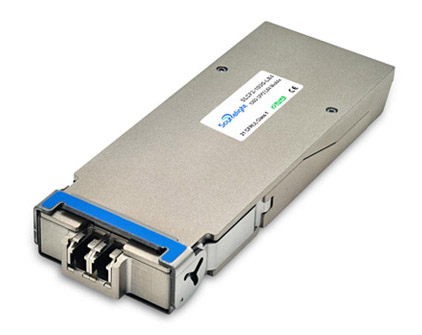

Sourcelight launching new products of 100G CFP2 LR4
Overview
Sourcelight’s SLCF2-100G-LR4 are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber.
They are compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3.
Features
¨ Hot-pluggable CFP2 form factor
¨ Supports 103.1Gb/s and 112Gb/s aggregate bit rates
¨ Power dissipation < 8W
¨ RoHS-6 compliant (lead-free)
¨ Commercial case temperature range of 0°C to 70°C
¨ Single 3.3V power supply
¨ Maximum link length of 10km on Single Mode Fiber (SMF)
¨ 4x28Gb/s DFB-based LAN-WDM transmitter
¨ 4x28G electrical interface
