| Name | Value |
| Package | SFP+ SW |
| Data Rate | 16Gbit/s |
| Wavelength | 850nm |
| Connector | Duplex LC |
| Reach | 100m |
| Temp | 0-70 |
| DDM | YES |
| Fiber Type | MMF |

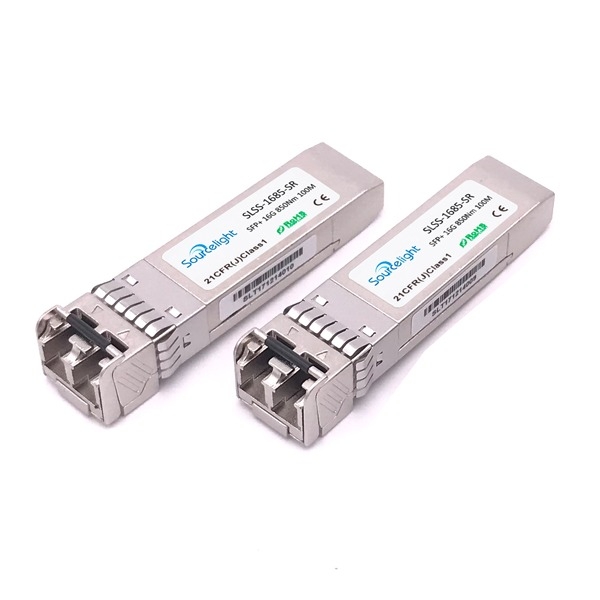

SLSS-1685-SR SFP+ transceivers, according to 16 Gigabit Small Form Factor Pluggable “SFP+” Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 4.1 and SFF-8472 Rev. 11.0, are designed for use in Fibre Channel links up to 14.025Gb/s data rate over multimode fiber. They are compatible with FC-PI-5 Rev. 6.00, SFF-8081 and SFF-8432.
SLSS-1685-SR offer commercial operating temperature option.
| Package (Form Factor) | SFP+ |
| Data Rate (typical) | 14.025 Gb/s |
| Centre Wavelength | 850nm |
| Distance | 100m OM3 MMF |
| Diagnostics | Digital Monitor |
| Transmitter | VCSEL Laser |
| Receiver | PIN photo detector |
| TX Output Power (dBm) | -6.0~-1.2 |
| RX Sensitivity (dBm) | -10.5 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex LC/UPC |
