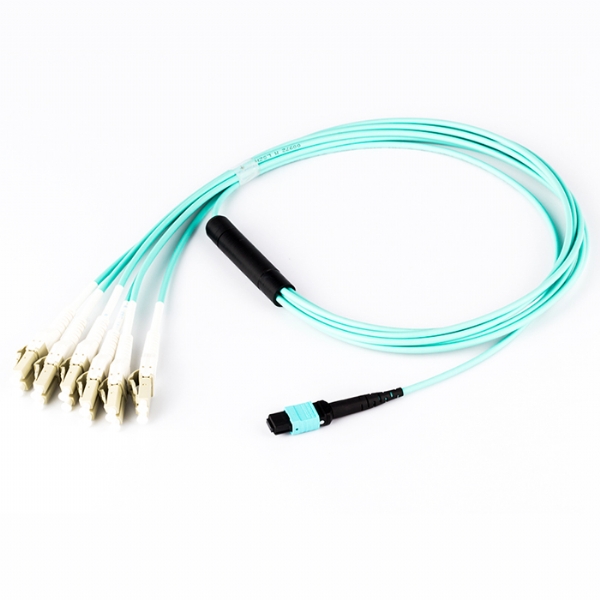

The MPO / MTP harness cable assemblies, is deployed inside plug and play cassette modules. This solution is a 12-colored 0.9mm cable utilizing a MPO / MTP connector on one end and generic connectors (such as LC, SC, FC, etc.) on the other end.
They are available for purchase as a bundle with Sourcelight's plug and play modules, MPO / MTP Adapter Plates, and other solutions. Available in 8/12/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and Single-mode fiber types.
| Type | Single mode / Multi mode |
| Polishing Type | PC / UPC |
| Cable diameter | Ribbon Fanout |
| Insertion loss (IL) [dB] | < 0.3 For SMF / < 0.5 For MMF |
| Return loss (RL) [dB] | > 45 PC / > 50 UPC |
| Ferrule ID(mm) | 0.125 For SMF / 0.127 For MMF |
| Exchangeability | ≤ 0.2 dB ( Connect Randomly ) |
| Vibration | ≤ 0.2 dB ( 5～50 Hz, 1.5mm Amplitude ) |
| Temp. Range | ≤ 0.2 dB ( - 40ºC ～ 80ºC, 21 Cycles ) |
| Body Color | Gray for PC |
| Boot Color | black / blue or customized available |
